In the fields of mining, construction, and infrastructure construction, crusher machines play an irreplaceable role in breaking large raw materials into usable aggregates or finished products. There are various types of crusher machine designed to adapt to different raw material properties, hardness levels, and processing requirements, each with unique structural characteristics and working principles. Among these diverse types of crusher machine, the spring cone crusher stands out as a widely used and high-performance equipment, especially suitable for processing hard and abrasive raw materials. Learning about the spring cone crusher, including its structure, working principle, advantages, application scenarios, and differences from other types of crusher machine, is crucial for professionals engaged in mining and construction to select and use equipment rationally. This passage will take an in-depth look at the spring cone crusher, helping readers systematically master relevant knowledge while understanding its position and value among different types of crusher machine.
An Overview of Types of Crusher Machine and the Position of Spring Cone Crusher
Before delving into the details of the spring cone crusher, it is necessary to first have a brief understanding of the common types of crusher machine, so as to better clarify the characteristics and application scope of the spring cone crusher. Generally speaking, types of crusher machine are classified according to their working principles and structural forms, mainly including jaw crushers, impact crushers, cone crushers, roller crushers, and hammer crushers. Each type of crusher machine has its own unique advantages and applicable scenarios: jaw crushers are mainly used for primary crushing of medium-hard to hard raw materials, with simple structure and strong durability; impact crushers are suitable for secondary or tertiary crushing of soft to medium-hard materials, and can produce high-quality cubical aggregates; roller crushers are mostly used for fine crushing of materials with low hardness, such as coal and limestone; hammer crushers rely on high-speed rotating hammers to crush materials, suitable for crushing brittle materials. Among these types of crusher machine, cone crushers are divided into spring cone crushers, hydraulic cone crushers, and compound cone crushers according to their different safety and adjustment mechanisms, and the spring cone crusher is the most classic and widely used type in cone crushers. Due to its excellent performance in processing hard and abrasive materials, the spring cone crusher has become an indispensable key equipment in many large-scale mining and construction projects, occupying an important position in the types of crusher machine.

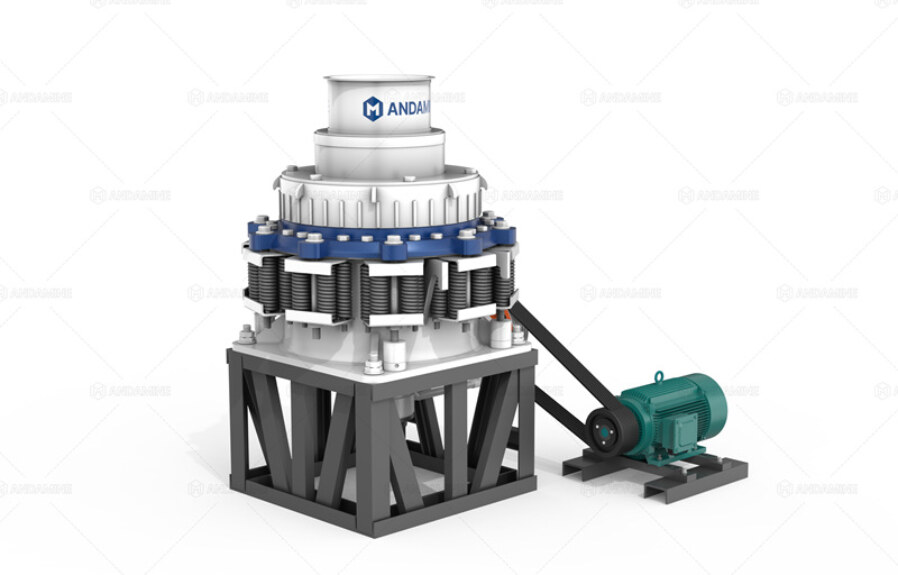

Structural Composition of Spring Cone Crusher
To better understand the working principle and performance characteristics of the spring cone crusher, it is necessary to first master its structural composition. The spring cone crusher is composed of multiple core components that cooperate with each other to complete the crushing process, and each component plays a vital role in ensuring the stable operation and crushing efficiency of the equipment. The main structural components of the spring cone crusher include the frame, eccentric shaft, cone mantle, concave liner, spring system, transmission device, feeding device, and discharging device. The frame is the base of the entire equipment, made of high-quality cast steel or welded steel plate, which has sufficient strength and rigidity to bear the huge impact force and pressure generated during the crushing process. The eccentric shaft is the core transmission component, which is driven by the motor through the transmission device to rotate, thereby driving the cone mantle to perform gyratory motion. The cone mantle and concave liner are the key crushing components, usually made of high-wear-resistant alloy steel, and the gap between them forms the crushing chamber. The shape and size of the crushing chamber can be adjusted according to the required discharge size. The spring system is a unique safety component of the spring cone crusher, which is installed around the frame. Its main function is to protect the equipment when foreign objects (such as iron blocks) enter the crushing chamber—when the pressure in the crushing chamber exceeds the set value, the spring will compress, the cone mantle will move downward, and the gap between the cone mantle and the concave liner will increase, allowing the foreign objects to be discharged, thus avoiding damage to the equipment. The feeding device is used to uniformly feed the raw materials into the crushing chamber, ensuring continuous and stable crushing operation. The discharging device is used to collect and transport the crushed finished products.
Working Principle of Spring Cone Crusher
The working principle of the spring cone crusher is based on the compression and shear crushing method, which is scientific and reasonable, and can effectively crush hard and abrasive raw materials. When the spring cone crusher is started, the motor drives the eccentric shaft to rotate through the V-belt, pulley, and gearbox. The rotation of the eccentric shaft causes the cone mantle to perform gyratory motion around the center line of the equipment—when the cone mantle rotates to the position closest to the concave liner, the raw materials in the crushing chamber are squeezed and sheared by the cone mantle and the concave liner, thereby being crushed; when the cone mantle rotates to the position farthest from the concave liner, the crushed materials under the action of gravity fall down from the gap between the cone mantle and the concave liner, completing a crushing cycle. With the continuous rotation of the eccentric shaft, the cone mantle performs continuous gyratory motion, and the raw materials are continuously fed into the crushing chamber, crushed, and discharged, forming a continuous crushing process. It should be noted that the crushing force of the spring cone crusher is generated by the gyratory motion of the cone mantle and the reaction force of the spring system, which can be adjusted according to the hardness and size of the raw materials. The spring system not only plays a protective role but also helps to maintain the stability of the crushing force, ensuring that the crushing efficiency and discharge size are stable.
Advantages of Spring Cone Crusher Compared with Other Types of Crusher Machine
Among the many types of crusher machine, the spring cone crusher can be widely used because it has many unique advantages that other types of crusher machine cannot match, especially in processing hard and abrasive raw materials. Firstly, the spring cone crusher has high crushing efficiency and large processing capacity. Due to its unique structural design and working principle, the spring cone crusher can fully crush the raw materials in the crushing chamber, and the crushing ratio is high (usually 4-8), which can reduce the number of crushing stages and improve the overall processing efficiency. Compared with jaw crushers, the spring cone crusher has a smaller volume and higher processing capacity under the same power; compared with impact crushers, the spring cone crusher is more suitable for processing hard materials, and the wear of the crushing components is smaller. Secondly, the spring cone crusher has good product quality. The crushed finished products have uniform particle size, good particle shape (mostly cubical), and low content of needle-like and flaky particles, which meet the requirements of high-grade construction projects such as road building and concrete production. This is because the spring cone crusher uses compression and shear crushing, which can avoid excessive crushing of materials and ensure the uniformity of product particle size. Thirdly, the spring cone crusher has strong wear resistance and long service life. The cone mantle and concave liner are made of high-wear-resistant alloy steel, which can withstand the friction and impact of hard and abrasive raw materials. At the same time, the spring system can effectively protect the equipment from damage caused by foreign objects, reducing the frequency of equipment failure and extending the service life of the equipment. Fourthly, the spring cone crusher has stable operation and convenient maintenance. The equipment has a reasonable structural design, smooth transmission, and low noise during operation. The wearing parts are easy to replace, and the daily maintenance work is simple, which can reduce the maintenance cost and downtime of the equipment. Finally, the spring cone crusher has strong adaptability. It can process various hard and abrasive raw materials, such as granite, basalt, quartzite, and ore, and can be used in primary crushing, secondary crushing, and tertiary crushing according to the processing requirements.
Application Scenarios of Spring Cone Crusher
Due to its excellent performance and unique advantages, the spring cone crusher is widely used in various fields that require processing hard and abrasive raw materials, and has become an important part of the types of crusher machine in these fields. Firstly, in the mining industry, the spring cone crusher is mainly used for crushing metal ores (such as iron ore, copper ore, and gold ore) and non-metal ores (such as quartz ore, feldspar ore, and limestone). In the beneficiation process, the spring cone crusher crushes the large ore into small particles that meet the beneficiation requirements, providing qualified raw materials for the subsequent beneficiation operation. Secondly, in the construction industry, the spring cone crusher is used for crushing construction aggregates, such as granite, basalt, and concrete debris. The crushed aggregates are used in the construction of highways, railways, bridges, high-rise buildings, and other projects, which can improve the strength and durability of the project. Thirdly, in the infrastructure construction field, the spring cone crusher is used for crushing raw materials in projects such as water conservancy projects, port construction, and airport construction. For example, in the construction of dams and breakwaters, the spring cone crusher crushes large rocks into small particles that meet the construction requirements, ensuring the stability and safety of the project. Fourthly, in the recycling industry, the spring cone crusher is used for crushing waste concrete, waste asphalt, and other construction wastes, realizing the recycling and reuse of resources, which is in line with the concept of green and environmental protection development. In addition, the spring cone crusher can also be used in the chemical industry, metallurgical industry, and other fields, providing qualified crushed materials for the production of chemical products and metallurgical products.
Key Notes for Using Spring Cone Crusher
Although the spring cone crusher has the advantages of stable operation, convenient maintenance, and strong adaptability, in order to ensure its safe and efficient operation and extend its service life, it is necessary to pay attention to some key points during use. Firstly, it is necessary to select the appropriate model and specification of the spring cone crusher according to the type, hardness, and processing capacity of the raw materials. If the model is too small, it will not meet the processing requirements; if the model is too large, it will cause a waste of energy and funds. Secondly, before starting the equipment, it is necessary to conduct a comprehensive inspection of the spring cone crusher, including checking whether the components are intact, whether the connections are tight, whether the lubricating oil level is sufficient, and whether the spring system is normal. Only after confirming that there are no problems can the equipment be started. Thirdly, during the operation of the equipment, it is necessary to feed the raw materials uniformly to avoid overloading the equipment. At the same time, it is necessary to observe the operation status of the equipment at any time, such as the sound of the equipment, the temperature of the motor, and the discharge size. If any abnormal situation is found, the equipment should be stopped immediately for inspection and treatment. Fourthly, it is necessary to regularly maintain and maintain the spring cone crusher, including replacing the lubricating oil, cleaning the equipment, and replacing the worn parts (such as the cone mantle and concave liner). Regular maintenance can ensure the stable operation of the equipment and extend its service life. Finally, it is necessary to strictly abide by the safety operation specifications, and the operators must be trained and certified before they can operate the equipment. It is strictly prohibited to put hands or other objects into the crushing chamber during the operation of the equipment to avoid safety accidents.
In conclusion, the spring cone crusher is an important type among the various types of crusher machine, with unique structural design, scientific working principle, excellent performance, and wide application scenarios. It plays an irreplaceable role in processing hard and abrasive raw materials in mining, construction, and infrastructure construction fields. By learning about the spring cone crusher, including its structure, working principle, advantages, application scenarios, and use notes, we can better understand its characteristics and value, and select and use it rationally in practical work. At the same time, understanding the spring cone crusher also helps us have a more comprehensive understanding of the types of crusher machine, laying a solid foundation for better application of crusher equipment.
